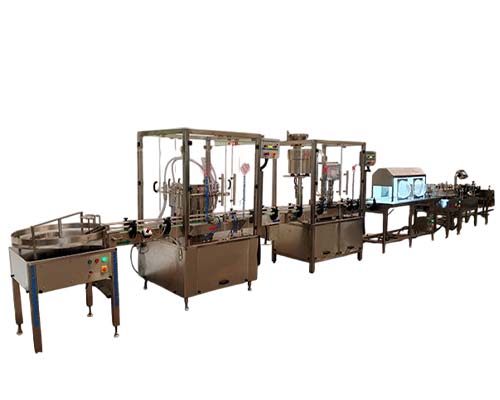

Automatic 8 Head Volumetric Liquid Filling Machine
Product Details:
| Machine Name : | Automatic Volumetric Liquid Filling Machine |
| Production Speed Per Hour : | 6400 to 7200 containers per hour Speed Depends upon the Number of Filling Heads |
| Number Of Filling Heads : | 8 Heads |
| Working Direction : | Left to Right – Linear |
| Filling System : | Volumetric Syringe Based |
| Suitable For Products : | Free Flowing Liquids |
| Suitable For Packing Material : | HDPE / PET / GLASS / METAL TIN / Aluminum Bottles |
| Application : | Filling Liquids in to the Bottles /Containers |
| Volume Capacity : | 5ml to 1000 ml with help of change parts |
| Volume Adjustment : | With the Help of Volume Adjustment Block |
| Suck Back System : | NRV Based / Drip Free Nozzles |
| Up Down Movement : | Mechanical (Cam Based) |
| Filling Volume Accuracy : | +/-1 % |
| Working Height : | 860mm ( +/-50 mm) |
| Machine Weight : | Approx 500 Kgs |
| Machine Dimension : | Approx 10 (L) x 8 (W) x 6 (H) – in Feet |
| No Bottle – No Filling : | With the help of Sensor |
| Bottle Stopper : | Pneumatic Based |
Exceptional Speed & Efficiency:
Designed for high-volume production, this advanced machine line is capable of filling up to 120 bottles per minute, depending on the bottle size and liquid viscosity. It’s an ideal solution for manufacturers looking to maximize throughput without compromising precision.
8-Head Precision Filling System:
The machine is equipped with 8 synchronized filling heads, ensuring consistent and accurate filling across all bottles. This reduces product loss and minimizes downtime during production.
Fully Integrated Automation:
Features automatic filling, capping, and labeling in a single streamlined system. Built-in memory parameter settings allow for quick and easy changeovers between different bottle sizes and types, optimizing workflow and minimizing setup time.
Designed for Versatility, Built for Efficiency
This machine is engineered to fill a wide range of liquid types into various shapes and sizes of containers. Operating on a volumetric filling principle, it ensures accuracy by adjusting the piston displacement to set the desired fill volume.
An integrated conveyor system and container indexing mechanism are precisely synchronized with the filling operation for smooth, uninterrupted performance. Available in 2, 4, 6, and 8-head models, it caters to diverse output requirements.
The machine comes with a stand-alone control panel for simplified operation and maximum control. All contact parts are manufactured from SS 316 stainless steel, ensuring hygienic processing and long-term durability.
Key Features
- Servo-assisted volume adjustment for precise filling
- ±0.5% repeatable accuracy of fill volume
- Programmable multi-speed and fill cycle profiles
- Quick and easy product changeovers with minimal downtime
- VFD (Variable Frequency Drive) for synchronized speed control
- Contact parts in SS 316 / PTFE / Teflon / Silicon
- Non-contact parts in SS 304 with a robust MS powder-coated base frame and SS cladding
- Adjustable conveyor guide rails for different container types
- No-Bottle, No-Fill system ensures efficiency and avoids wastage
- Drip-free operation for clean and consistent results
- Effective CIP (Clean-in-Place) system—no need to dismantle contact parts
- Wide filling range with a single syringe: 30 ml to 1000 ml
- User-friendly HMI + PLC interface
- Built-in alarms and interlocks for safety and error detection
- Multi-level password protection for secure data management
